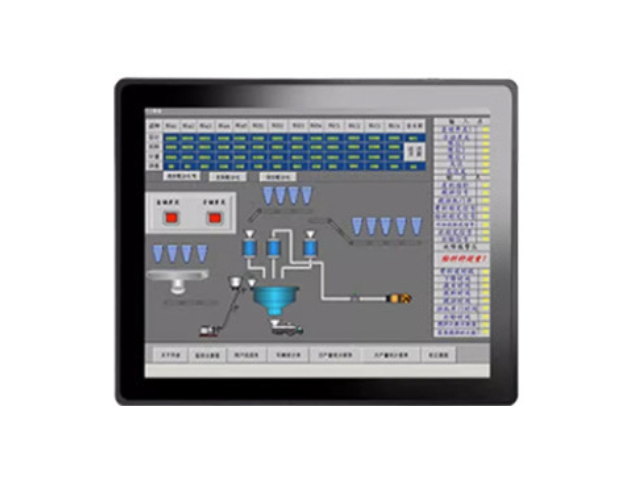

Open Frame Touch Panel PC
| Model | TS-04 |
|---|---|
| Key Features | · Multi-points touch screen |
| Size | custom |
| Touch Type | 10 points infrared IR touch screen |
| System | Windows, Android, Linux (Optional) |
Open Frame Touch Panel PC
Size: 10.1″/12″/13.3″/15″/15.6″/17″/18.5″/19″/21.5″/23.6″/23.8″/27″/32″/43″ (Optional)
Resolution: 1024*768/1280*800/1280*1024/1366*768/1920*1080 (Optional)
Viewing Angle: 89°/89°/89°/89° (Typ.)
Contrast Ratio: 1000:1
Response Time: 8ms
Brightness: 250cd/m2
Touch Type: 10 Points capacitive touch screen
Storage Temperature: -20~60℃
Working Temperature: 0~50℃
Monitor Spec
Interface: VGA input, HDMI input*1, Audio*1, DC*1, USB-A*1
Adapter: DC 12V
Optional Function: VGA*1 or VGA*1+HDMI*1+DV1*1
X86 Spec
CPU: Intel Celeron CPU J1900/2.0GHz
Graphics: Intel HD Graphics
Storage: 2GB/4GB/8GB DDR3 (Optional)
Hard Disk: 32GB/64GB/128GB/256GB/512GB SSD
Internet: 1*Realtek RTL8111H
OS: Win7/Win10/Linux
Interface: VGA output*1, HDMI output*1, COM*1（RS232), USB 2.0*3, USB 3.0*1, LAN*1, Audio*2 (LineOut*1+1/MIC-IN*1), RJ45*1, DC*1
Optional Function: Wifi/Bluetooth BT V4.0/3G/4G, I3/I5/I7
Android Spec
CPU: RK3288 Cortex-A17, 1.8Ghz
GPU: Mali-T764
RAM: 2GB/4GB DDR3 (Optional)
Storage: 16GB/32GB/64GB/128GB EMMC (Optional)
Internet: RJ45, WIFI 802.11 b/g/n
System: Android 5.1, Android 6.0 (Optional)
Interface: USB 2.0*2,HDMI output*1,RJ45*1,TF*1,Audio*1，USB OTG*1
Adapter: DC 12V
To OEM this product, please feel free to contact us, we will reply you asap.
Follow us on:
| Touch Screen 10 points infrared IR touch screen, fast and sensitive response without delay, enables users to interact with the device by it, bringing convenience for daily operation. |
 |
 |

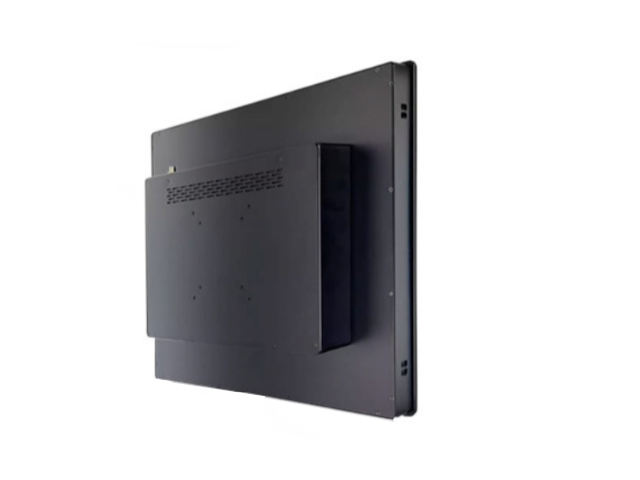

Different Installation Ways Open framelcd monitors are designed to be mounted directly into a custom enclosure or integrated into existing equipment or machinery. This allows for flexibility in the design and placement of the touch screen. |
| Customize Specification Support customers to customize functions, sizes, specification and models according to their different usage needs with low MOQ. |
 |
 |
Wide Applications The open frame touch panel pc, multiple installation methods, can be widely used for different application scenarios, like industrial, medical, gaming, bank, transportation, education, etc. Many open-frame touch screens are built to withstand harsh environments, including dust, moisture, and temperature fluctuations. This durability makes them suitable for industrial settings. |
