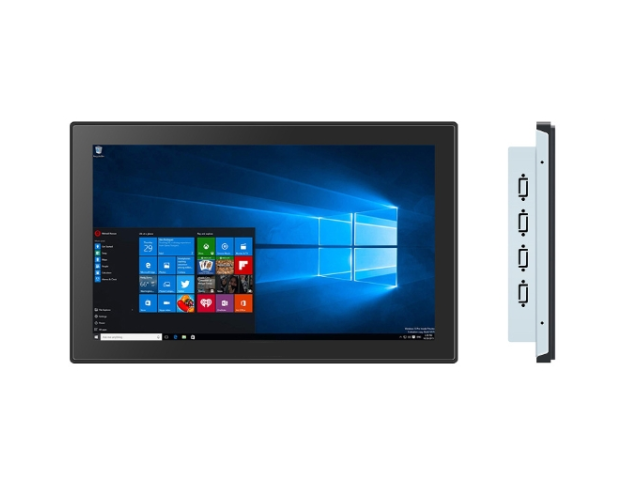

Android Industrial Embedded Panel PC

Model

TS-07
Size

10.1"/12"/13.3"/15"/15.6"/17"/18.5"/19"/21.5"/23.6"/23.8"/27"/32"/43" (Optional)
Key Features

· Multi-points touch screen
· Multiple installation methods
· Support custom specification, function, model…
· Open frame model, suitable for different applications.
Touch Type

10 points capacitive touch screen
System

Android

Android Industrial Embedded Panel PC
Size: 10.1″/12″/13.3″/15″/15.6″/17″/18.5″/19″/21.5″/23.6″/23.8″/27″/32″/43″ (Optional)
Resolution: 1024*768/1280*800/1280*1024/1366*768/1920*1080 (Optional)
Viewing Angle: 89°/89°/89°/89° (Typ.)
Contrast Ratio: 1000:1
Response Time: 8ms
Brightness: 250cd/m2
Touch Type: 10 Points capacitive touch screen
CPU: RK3288 Cortex-A17, 1.8Ghz
GPU: Mali-T764
RAM: 2GB/4GB DDR3 (Optional)
Storage: 16GB/32GB/64GB/128GB EMMC (Optional)
Internet: RJ45, WIFI 802.11 b/g/n
System: Android 5.1, Android 6.0 (Optional)
Interface: USB 2.0*2,HDMI output*1,RJ45*1,TF*1,Audio*1，USB OTG*1
Adapter: DC 12V
Storage Temperature: -20~60℃
Working Temperature: 0~50℃



To OEM this product, please feel free to contact us, we will reply you asap.

Send An Inquiry

Follow us on:

Touch Screen
10 points touch screen, fast and sensitive response without delay, enables users to interact with the device by it, bringing convenience for daily operation.

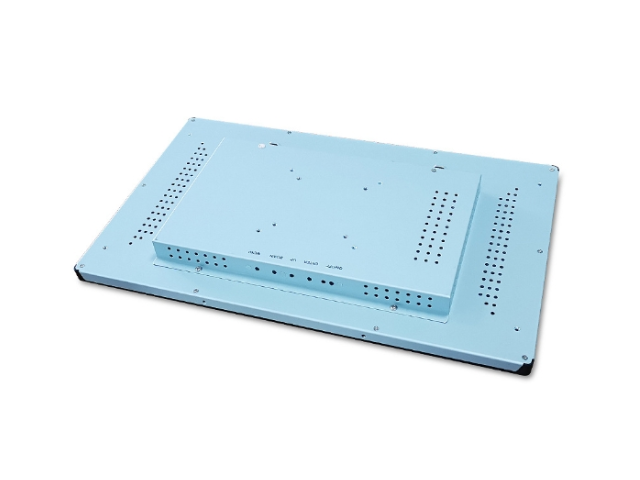

Different Installation Ways
Open frame embedded OEM industrial monitor is designed to be mounted directly into a custom enclosure or integrated into existing equipment or machinery. This allows for flexibility in the design and placement of the touch screen.

Customize Specification
Support customers to customize functions, sizes, specification and models according to their different usage needs with low MOQ.

Wide Applications
The Android indutrial panel pc, multiple installation methods, can be widely used for different application scenarios, like industrial, medical, gaming, bank, transportation, education, etc. Many open-frame touch screens are built to withstand harsh environments, including dust, moisture, and temperature fluctuations. This durability makes them suitable for industrial settings.
