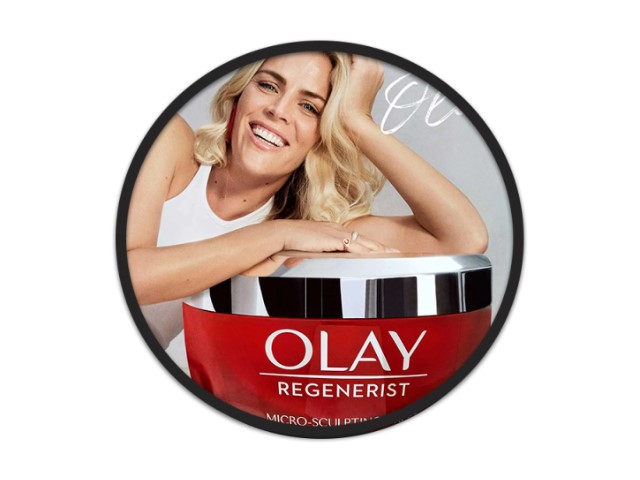

23.6 Inch Round Touch Screen
Size: 23.6″
Display Area: 599.424(W)*599.424(H) mm
Resolution: 1280(V)*1280(H)
Brightness: 1500cd/m2
Contrast Ratio: 1000:1
Display Color: 16.7M, 72%NTSC
Backlight: WLED
Viewing Angles: 178°(H)*178°(V)
Response Time: 14ms
Lifetime: 50000 hours
CPU: Rockchip RK3568 Quad core ARM Cotex-A55 2.0Ghz
RAM: 2G DDR4
ROM: 16G EMMC(16G/32G EMMC for option)
Memory Extension: TF Card extension with the highest support for 128GB
System: Android 11
Intetnet: Support 10/1000M Internet, 2.4G WIFI connection, BT 4.0
RTC Real Time Clock: Support timing on / off function
Interfaces: USB 3.0*2, TF*1, RJ45*1, HDMI OUT*1, Ear+Mic*1
Optional Function: 4G module, speaker 8Ω 5W*2, support for special requirements customization
Information Management System: Support
Operating Voltage: 100-240V(50/60Hz)
Power Rating: AC 100-240V input
Power Consumption: ≤120W
Product Size: 657*657*55mm

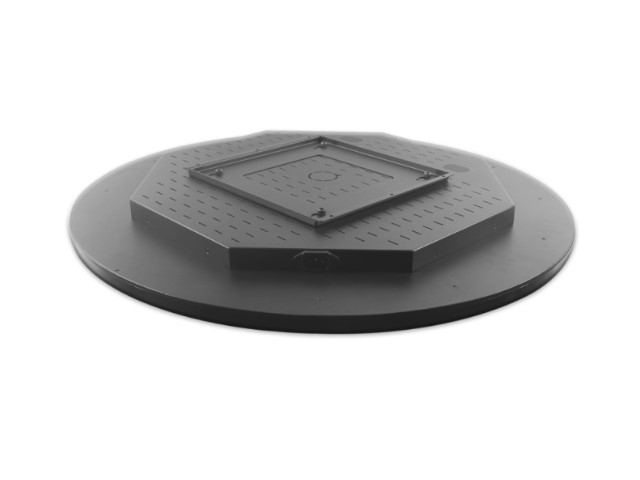

Installation Method: Wall-mounted
Net Weight: ≤9.1KG
Storage Temperature: -20℃～60℃
Working Temperature: 0℃～50℃
Storage Humidity: 5%～95%
Working Humidity: 10%～85%
To OEM this product, please feel free to contact us, we will reply you asap.
