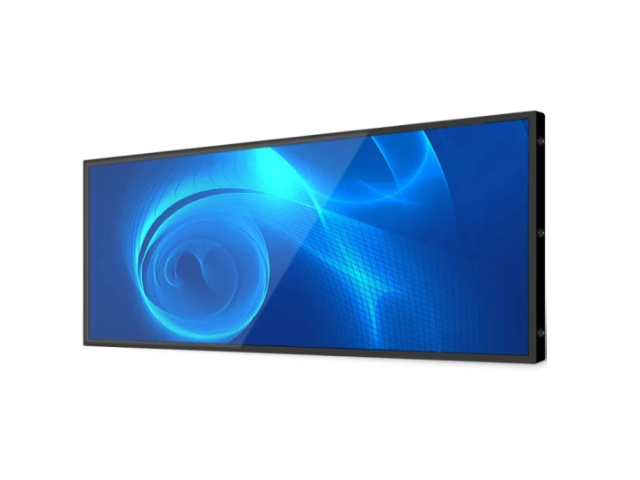

48″ Stretched Lcd Screen
| Information Management System | Control, schedule, update, and manage the contents displayed on these unique elongated screens,ensuring that the right information is presented to the target audience effectively and efficiently. |
|---|---|

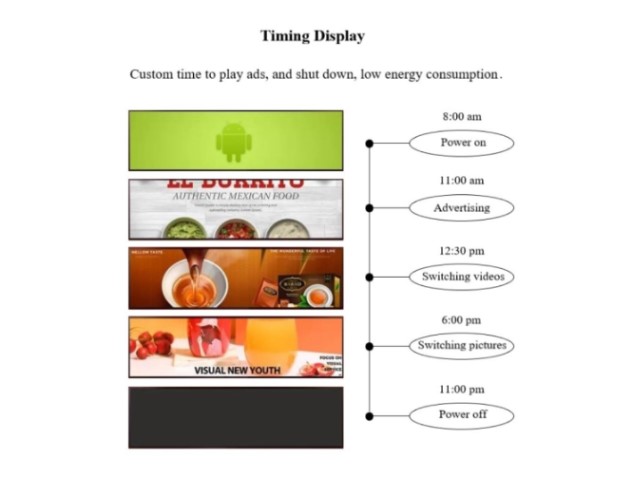

| Timing Display | Users can schedule when specific contents will be displayed on the bar LCD display, don't need to replace contents manually on time. |

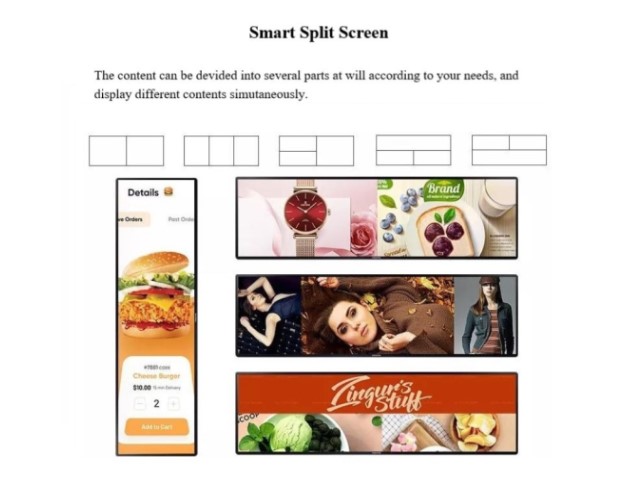

| Smart Split Screen | Support multi-zone layouts, enabling different pieces of contents to be displayed simultaneously in different areas of the bar display. |
| Horizontal & Vertical Screen Switching | Supports horizontal (landscape) and vertical (portrait) modes |
Technical Specification
Size: 48 inch
Active Display Area: 1194.05(H)*223.884(V)mm
Resolution: 3840(V)*720(H)
Brightness: 1000cd/m2
Contrast Ratio: 1000:1
Display Color: 1.07B
Viewing Angles: 178°(H)*178°(V)
Response Time: 6ms
Lifetime: 50000 hours
CPU: Rockchip RK3288 Quad core ARM Cotex-A17
RAM: 2G/4G DDR3 (optional)
ROM: 8G/16G/32G/64G (optional)
Memory Extension: TF Card extension with the highest support for 64GB
System: Android 8.1
WIFI: 802.11 a/b/g/n
RTC Real Time Clock: Support timing on / off function
Interfaces: TF Card*1, USB*2, RJ45*1, Mini HDMI*1, Earphone*1
Information Management System: Support
Remote Control: Support
Operating Voltage: 100~240V(50/60Hz)
Power Consumption: ≤20W
Installation: Embedded, wall-mounted (optional)
Storage Temperature: -20℃~60℃
Working Temperature: 0℃~50℃
Storage Humidity: 5%~95%
Working Humidity: 10%~85%

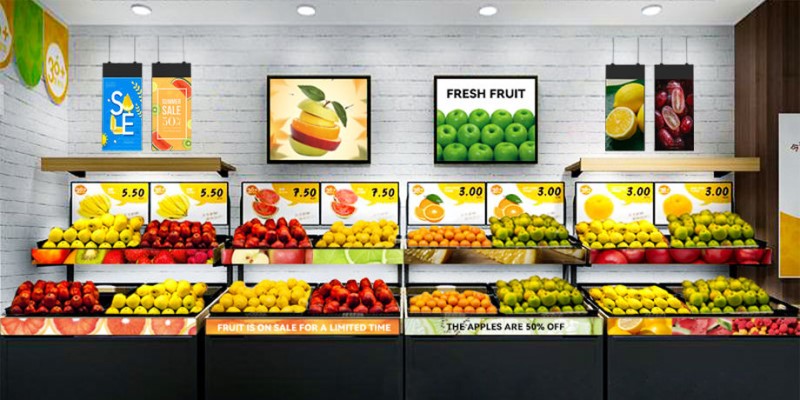

Applications:
To OEM this product, please feel free to contact us, we will reply you asap.
