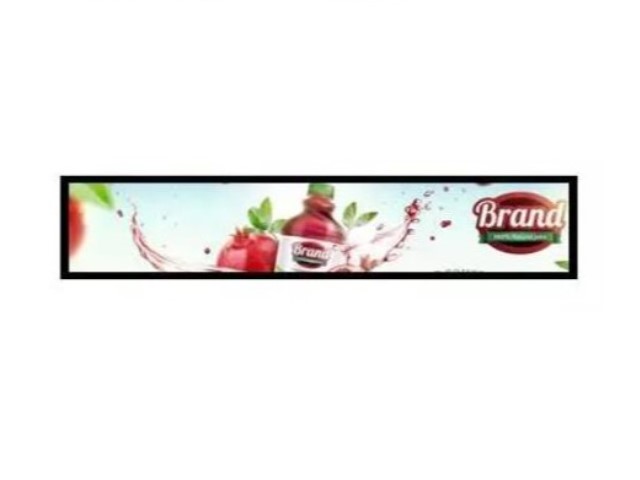

| 23.1 Inch Single Stretched Lcd Screen | |
| Size: | 23.1 inch |
| Active Display Area: | 585.6(H)*48.19(V)mm |
| Resolution: | 1920(V)*158(H) |
| Brightness: | 400cd/m2 |
| Contrast Ratio: | 3000:1 |
| Display Color: | 16.7M |
| Viewing Angles： | 178°(H)*178°(V) |
| Response Time | 6ms |
| Lifetime: | 30000 hours |
| Memory Extension: | TF Card extension with the highest support for 32GB |
| RTC Real Time Clock: | Support timing on / off function |
| Interfaces: | Micro USB*1 (OTG), TF card*1, Type-C*1 |
| Information Management System: | Support |
| Remote Control: | Support |
| Operating Voltage: | 100~240V(50/60Hz) |
| Power Consumption: | ≤20W |
| Installation: | Embedded, wall-mounted (optional) |
| Storage Temperature: | -20℃~60℃ |
| Working Temperature: | 0℃~50℃ |
| Storage Humidity: | 5%~95% |
| Working Humidity: | 10%~85% |
To OEM this product, please feel free to contact us, we will reply you asap.
Follow us on:
 |
Information Management System A software solution designed to control, schedule, update, and manage the contents displayed on these unique elongated screens. This system plays a crucial role in ensuring that the right information is presented to the target audience effectively and efficiently. |
| Timing Display Users can schedule when specific contents will be displayed on the bar LCD display. This is important for ensuring that relevant information is shown at the right times, don’t need to replace contents manually on time. |
 |
 |
Smart Split Screen Support multi-zone layouts, enabling different pieces of contents to be displayed simultaneously in different areas of the bar display, enhancing content delivery and engagement by allowing users to view multiple types of information or media on a single display. |
| Horizontal & Vertical Screen Switching The stretched lcd screen supports horizontal (landscape) and vertical (portrait) modes, users can tailoring their orientation to the specific task or application at hand, enhanceing the flexibility and usability of displays. |
 |
