Transparent Dual Smart Signage For Retail

Model	DG-04
Key Features	· Double-sided display · With content management system · Support split screen · Support timing display
Resolution	19201080, 38402160 (Optional)
RAM	1G/2G/4G (Optional)
ROM	4G/8G/16G/32G (Optional)
System	Android, Windows (Optional)
WIFI	Built-in WIFI, BT 4.0 (Optional)

Send An Inquiry

Technical Specification
Features

Technical Specification

Transparent Dual Smart Signage For Retail
Size: 32″, 43″, 55″ (Optional)
Resolution: 1920*1080
Brightness: 350cd/m2
Response Time: 6ms
Display Color: 16.7m
Viewing Angle: 178/178 degree
Operating System: Andriod 6.0, Windows (Optional)
RAM: 1G, 2G, 4G (Optional)
ROM: 4G, 8G, 16G, 32G (Optional)
SD Card: Support max 64G
Port: USB 2.0*2, TF card slot*1, Stereo mini jack*1, Rj45 Lan*1
WIFI, BT: Built-in WIFI, BT 4.0 (Optional)
TF Card: Support
Storage Temperature: -10~+60℃
Operating Temperature: 0~+40℃

To OEM this product, please feel free to contact us, we will reply you asap.

Send An Inquiry

Follow us on:

Features

	Information Management System A software solution designed to control, schedule, update, and manage the contents displayed on these unique elongated screens. This system plays a crucial role in ensuring that the right information is presented to the target audience effectively and efficiently.

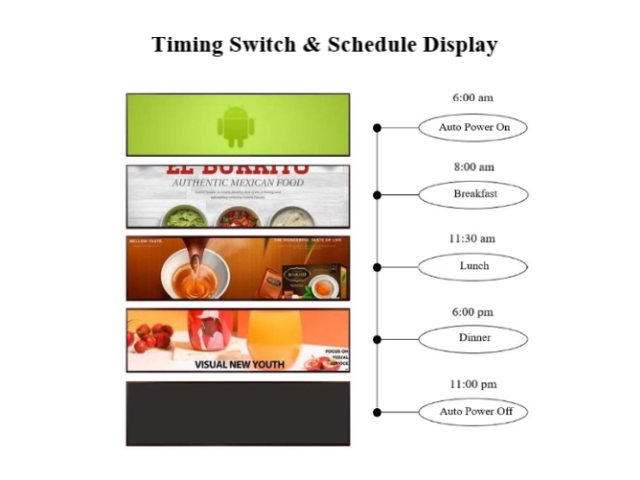

Timing Display Users can schedule when specific contents will be displayed on the bar LCD display. This is important for ensuring that relevant information is shown at the right times, don’t need to replace contents manually on time.

	Smart Split Screen Support multi-zone layouts, enabling different pieces of contents to be displayed simultaneously in different areas of the bar display, enhancing content delivery and engagement by allowing users to view multiple types of information or media on a single display.

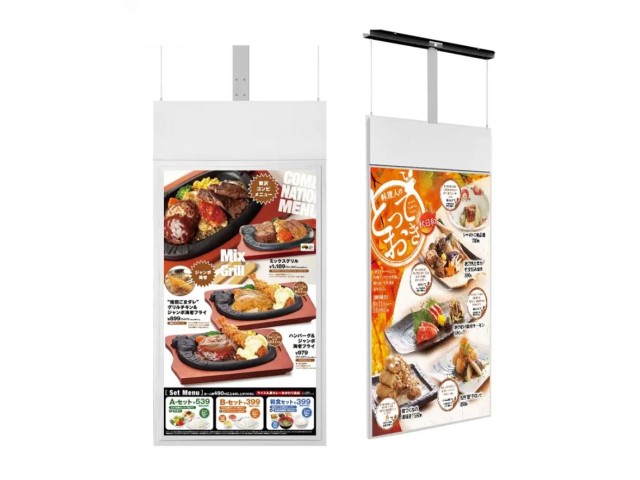

Double-sided display There are screens on both front side and back side on the smart display, support displaying different contents simutaneously, also supports horizontal (landscape) and vertical (portrait) modes, users can tailoring their orientation to the specific task or application at hand, enhanceing the flexibility and usability of displays.
